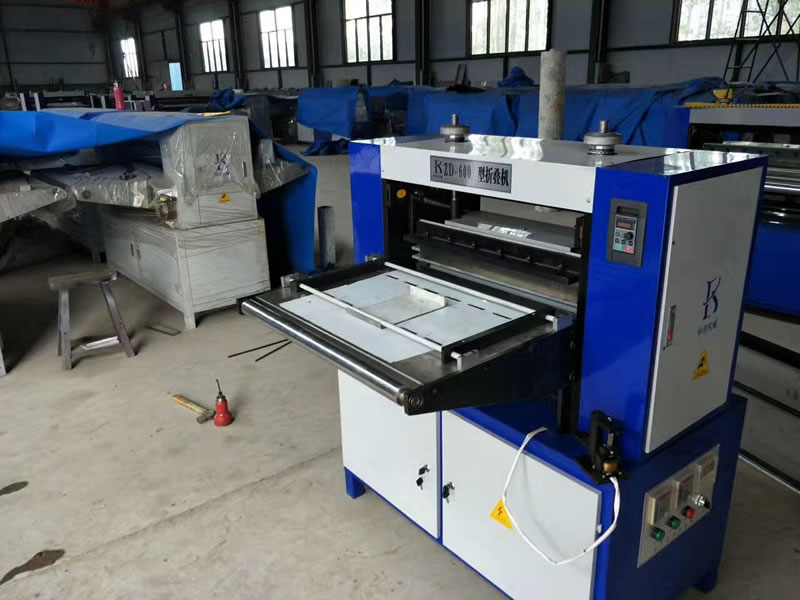

ZD-600 Knife/blade Pleating Machine

1. Pleating height: 5 - 55mm

2. Layers pleated: 1 - 5

3. Pleating speed: 20 - 150 pleats/min

4. Max. pleating width: 600 mm

5. Thickness of material: 0.3 - 3mm

6. Speed adjustable motor: 1.5KW

7. Power: 1.5KW  380V  50Hz

8. Heater Power: 3KW

9.Max Heat Temperature: 160°C
