Wire Mesh Coil Curtain

Metal coil curtain is also called metal coil drapery. Generally, it is made from stainless steel wire, aluminum wire, copper wire or other materials. It is a new kind of high end metal curtain like chain link curtain and chain mail curtain that used to decorative office buildings, hotels, shopping center, concert halls and other places. Compared with traditional curtain, metal coil drapery has excellent fireproof property, ventilation and light transmission, thus it has longer service life. Furthermore, its various spray coated colors not only fit for different design styles of buildings but also meet different demands of our customers. Due to it has so many functions, metal coil curtain is an ideal material for indoor decorations, sun shades, exterior wall ceilings, security gates and so on.

Specifications:

   • Product name: metal coil curtain.
   • Material: stainless steel, iron, copper, aluminum alloy, low carbon steel, etc.
   • Surface treatment: pickling, anodic oxidation, baking varnish or spray coated.

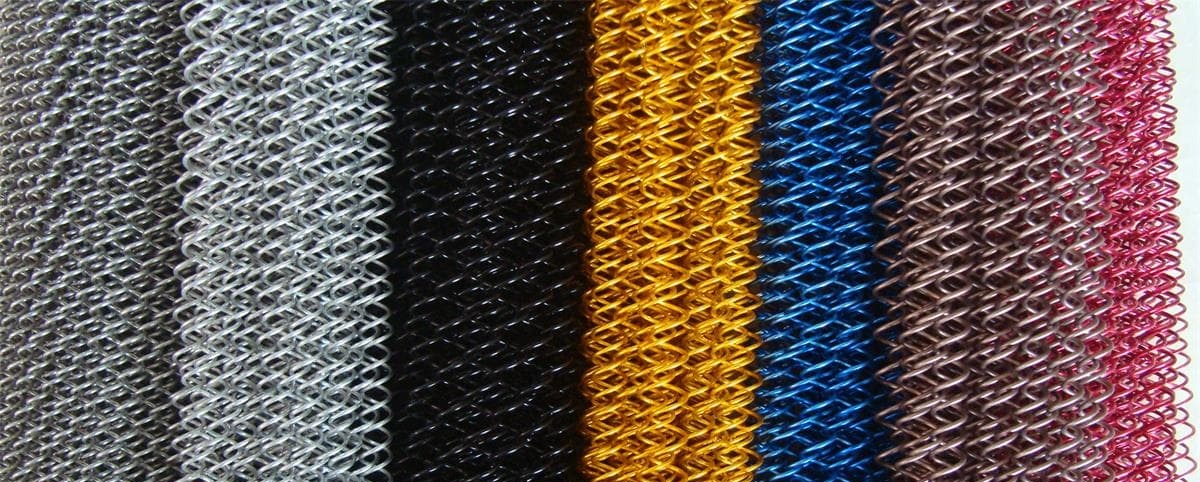

   • Color: silver, golden, brass yellow, black, gray, bronze, red, original metallic color or spray into other colors.
   • Wire diameter: 0.5 mm - 2 mm.
   • Aperture size: 3 mm - 20 mm.
   • Open area: 40% - 85%.
   • Thickness: 5.5 mm - 7.1 mm.
   • Weight: 4.2 kg/m2 - 6 kg/m2. (depending on material and size chosen)
   • Length & Width: customized.

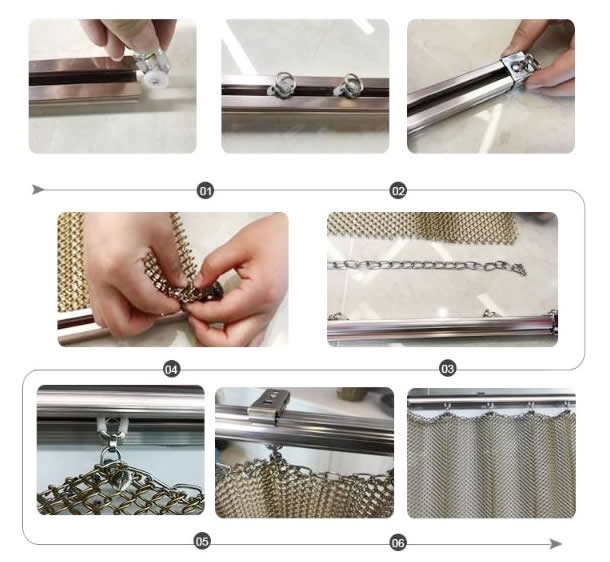

Installation Process:

Step 1: Pulley wheel slip into the track
Step 2: Fix the track head in two sides
Step 3: Confirm the gap of the mesh curtain folds
Step 4: Connect and fix the track, metal chain and curtain by Screws
Step 5: Install the connection for track and wall
Step 6: Installation renderings
