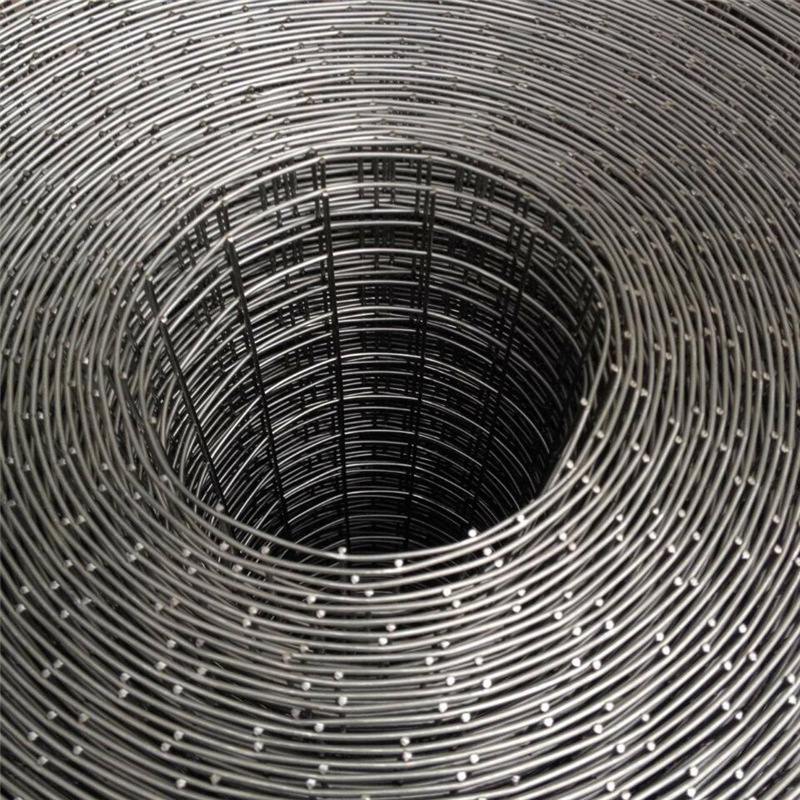

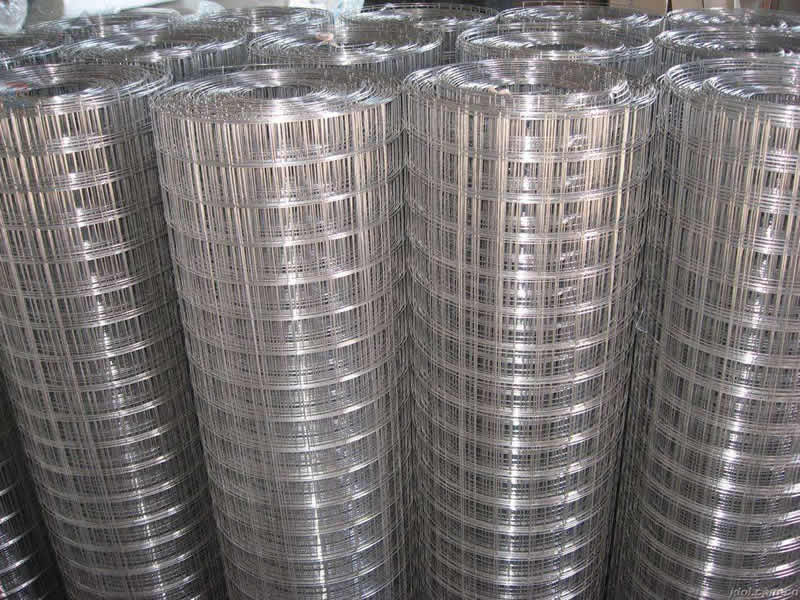

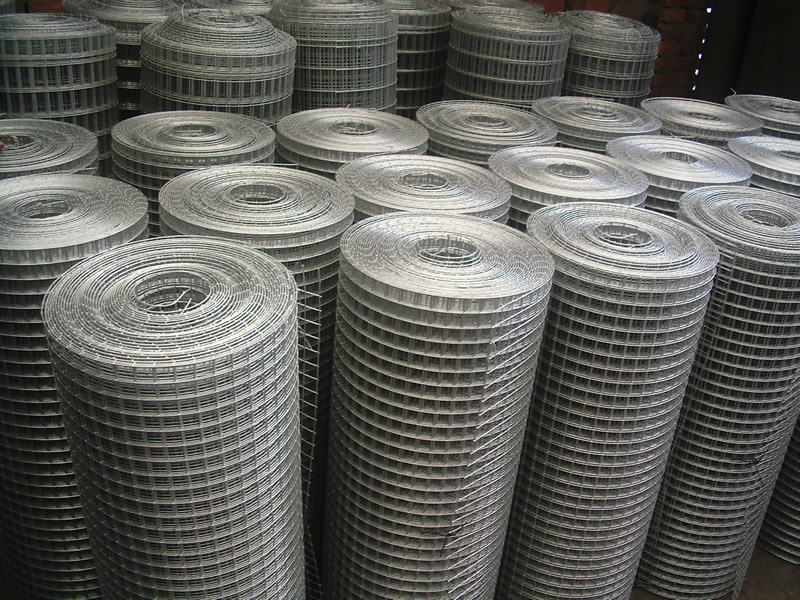

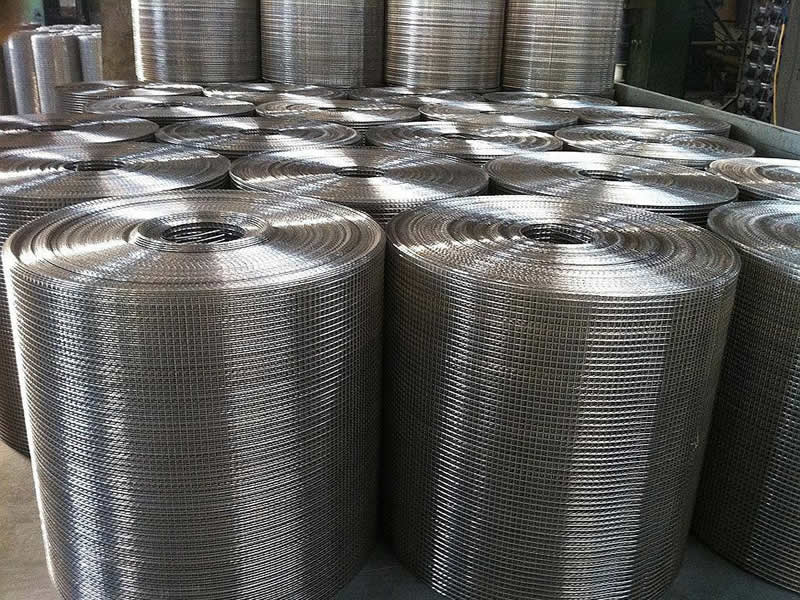

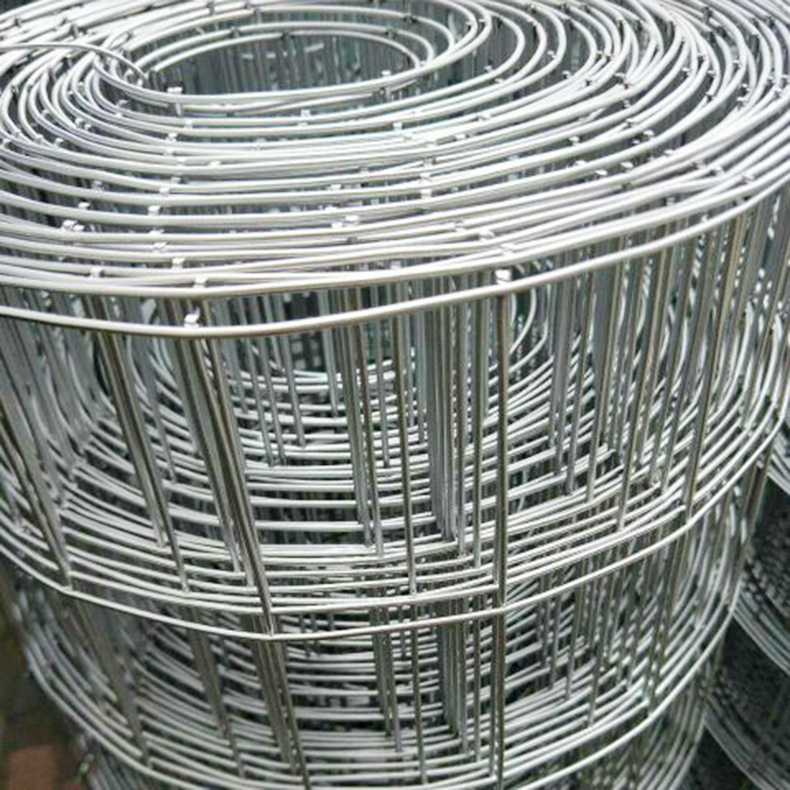

Welded Wire Mesh Roll

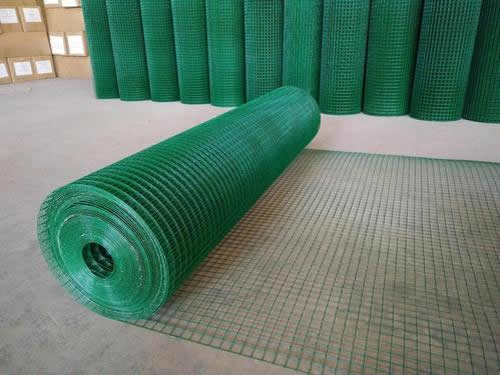

Welded Wire Mesh Roll Materials applied for welded wire mesh products include Low carbon steel wire,stainless steel wire,iron wire,Galvanized steel wire,PVC coated iron wire in blue,green,yellow and other colors

* Strong welded and bright luster. 2 inch by 4 inch openings keep out pests and small critters

* Strong mesh, won’t come loose if cut in pieces or under pressure.

* Galvanized before welding. Anti-corrosive and anti-rust.

* Great for property boundaries, enclosing gardens and more

Specification
Opening Mesh Wire Diameter Width 0.4-2 m
Length 5-50 m
Material:
*Electric Galvanized before welding
*Electro Galvanized after welding
*Hot dipped Galvanized before welding
*Hot dipped Galvanized after welding
*Stainless steel
SUS 304, SUS 316, SUS 316L,etc.
In inch In metric unit
1/4" x 1/4" 6.4 x 6.4mm BWG24-22
3/8" x 3/8" 10.6x 10.6mm BWG22-19
1/2" x 1/2" 12.7 x 12.7mm BWG23-16
5/8" x 5/8" 16x 16mm BWG21-18
3/4" x 3/4" 19.1 x 19.1mm BWG21-16
1" x 1/2" 25.4x 12.7mm BWG21-16
1-1/2" x 1-1/2" 38 x 38mm BWG19-14
1" x 2" 25.4 x 50.8mm BWG16-14
2" x 2" 50.8 x 50.8mm BWG15-12
2” x 4" 50.8 x 101.6mm BWG15-12
4” x 4" 101.6 x 101.6mm BWG15-12
4” x 6" 101.6 x 152.4mm BWG15-12
6” x 6" 152.4 x 152.4mm BWG15-12
6” x 8" 152.4 x 203.2mm BWG14-12
