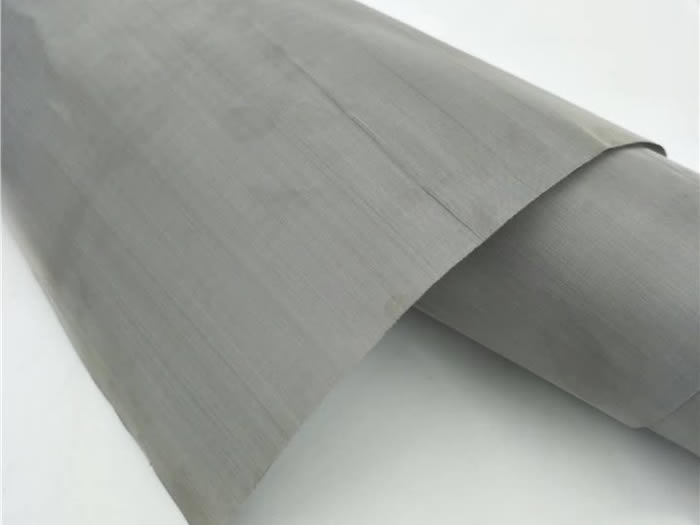

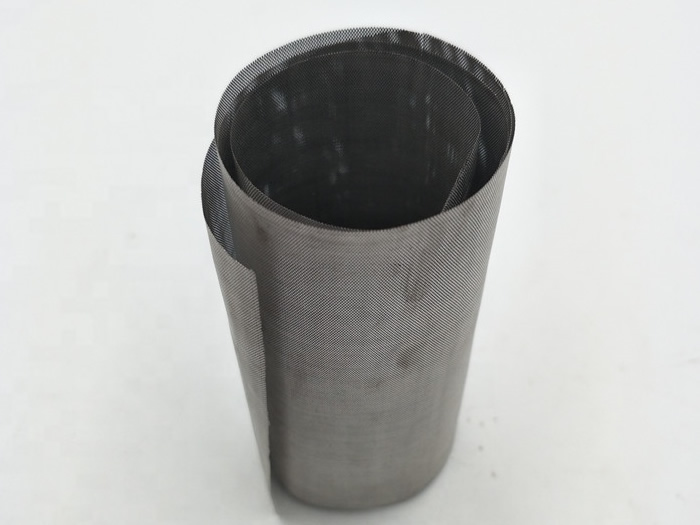

The inconel is the alloy of nickel, chrome and iron. According to the chemical composition, the inconel can be divided into inconel 600, inconel 601, inconel 625, inconel 718, inconel 617, and inconel X750.
Weave Pattern: plain weave, twill weave.
Materials: Inconel 600,Inconel 601,Inconel 617,Inconel 625,Inconel 718,Inconel X-750.
Feature: Inconel wire cloth can be used in the temperature range from low temperature to 1093 degrees Celsius.No magnetic,oxidation resistance, very good cold-formed function,good weldability, good corrosion resistance to the reducing environment of the medium intensity.
Use: In the chloride ion and the alkaline salt solution,no corrosion happen. Inconel wire mesh is widely used in Petrochemical, aerospace industry, hydropower, nuclear power, oil refining and shipbuilding, onshore and offshore oil and gas, pulp and paper, chemical fiber, machinery equipment manufacturing industry and the change of heat exchangers and other products, highly recognized by customers.
Packing: waterproof paper with plastic cloth,then put into wooden box.
Inconel wire Mesh: 2 mesh to 200 mesh in plain weave.
Specification:
Inconel Wire Mesh | ||
Mesh/Inch | Wire Diameter(mm) | Aperture(mm) |
2 | 1.6 | 11.10 |
4 | 0.91 | 5.44 |
6 | 0.71 | 3.52 |
8 | 0.50 | 2.67 |
10 | 0.50 | 2.04 |
12 | 0.45 | 1.66 |
14 | 0.40 | 1.41 |
16 | 0.30 | 1.28 |
18 | 0.25 | 1.16 |
20 | 0.25 | 1.02 |
30 | 0.21 | 0.64 |
40 | 0.19 | 0.45 |
50 | 0.15 | 0.36 |
60 | 0.15 | 0.27 |
70 | 0.13 | 0.232 |
80 | 0.12 | 0.197 |
90 | 0.11 | 0.172 |
100 | 0.10 | 0.154 |
110 | 0.09 | 0.141 |
120 | 0.09 | 0.122 |
130 | 0.07 | 0.125 |
140 | 0.07 | 0.111 |
150 | 0.06 | 0.109 |
160 | 0.06 | 0.098 |
180 | 0.053 | 0.088 |
200 | 0.053 | 0.074 |
Inconel 600 Chemical Composition %
C | Mn | Fe | Cu | Ni | Si | S | Cr |
Max | Max | Max | Max | Max | Max | Max | Min/Max |
0.15 | 1.0 | 6.0 - 10.0 | 0.5 | 72.0 | 0.5 | 0.015 | 14.0 - 17.0 |
Inconel's materials:
1. Inconel 600 is non-magnetic, has better oxidation resistance than pure nickel and good resistance to chloride-ion stress corrosion.
2. Inconel 617 has an exceptional combination of metallurgical stability, strength, and oxidation resistance at high temperatures.
3. Inconel 718 has exceptional creep-rupture properties up to 1300 degrees F, and outstanding weldability without spontaneous hardening.
4. Inconel X-750 is similar to alloy 600, but precipitation hardenable, and has a very low creep rate.
