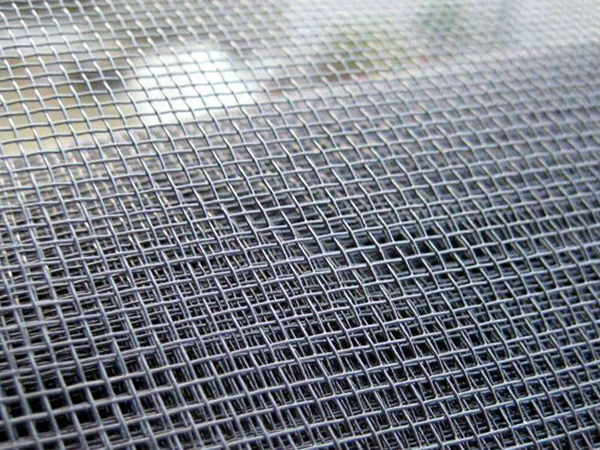

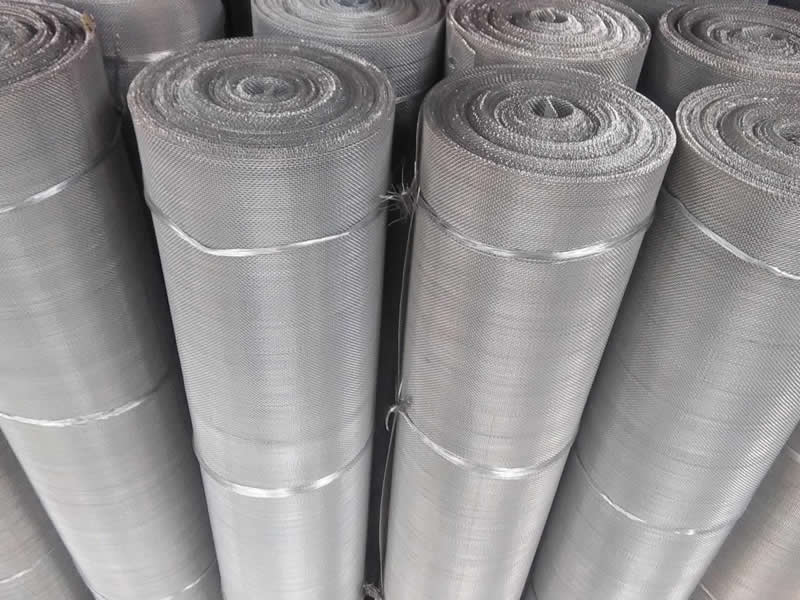

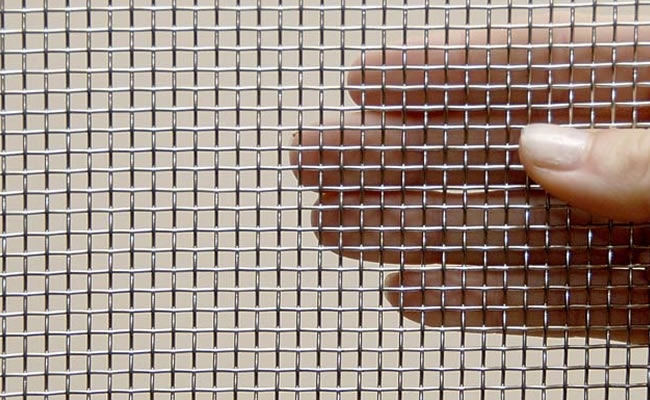

Galvanized square wire mesh is made of low carbon iron wire with precision construction and uniform mesh, excellent corrosion and rust resistance.
It is used in industries and constructions to sieve grain powder, filter liquid and gas, safety guards on machinery enclosures. Also for wood strips in making wall and ceiling, poultry fence and all kind of sieves, etc.
Diversified producing methods:
Hot dipped galvanized after woven square iron wire mesh
Electric galvanized after woven square iron wire mesh
Galvanized before woven square iron wire mesh
The Specification of Galvanized Square Wire Mesh: 3mesh--60mesh.
The Width of Galvanized Square Wire Mesh:3' 4'
Wire gauge:18BWG-38BWG
Wire Gauge (BWG) mesh/inch | Wire Gauge (BWG) mesh/inch |
3meshX21BWGX3'X100' | 22meshX33BWGX3'X100' |
4meshX23BWG | 24meshX35BWG |
5meshX24BWG | 25meshX35BWG |
6meshX25BWG | 26meshX36BWGX1mX25m |
8meshX24BWG | 26meshX36BWGX3'X100' |
8meshX26BWG | 28meshX36BWG |
10meshX27BWG | 30meshX36BWG |
10meshX28BWG | 30meshX36BWGX1mX25m |
12meshX29BWG | 30meshX36.5BWGX1mX25m |
14meshX28BWG | 35meshX36BWGX3'X100' |
14meshX30BWG | 40meshX38BWG |
16meshX30BWG | 40meshX38BWGX1mX25m |
18meshX30BWG | 45meshX38BWGX3'X100' |
20meshX32BWG | 50meshX38BWG |
20meshX33BWG | 60meshX38BWG |
22meshX32BWG | - |
Note: Other specifications are available at the customer's request. |
