Barbed Wire

Barbed Wire divided into double twisted barbed wrie and single twisted barbed wire.

Material: Galvanized steel wire,stainless steel wire, PVC coated wire

Types of Barbed Wire:

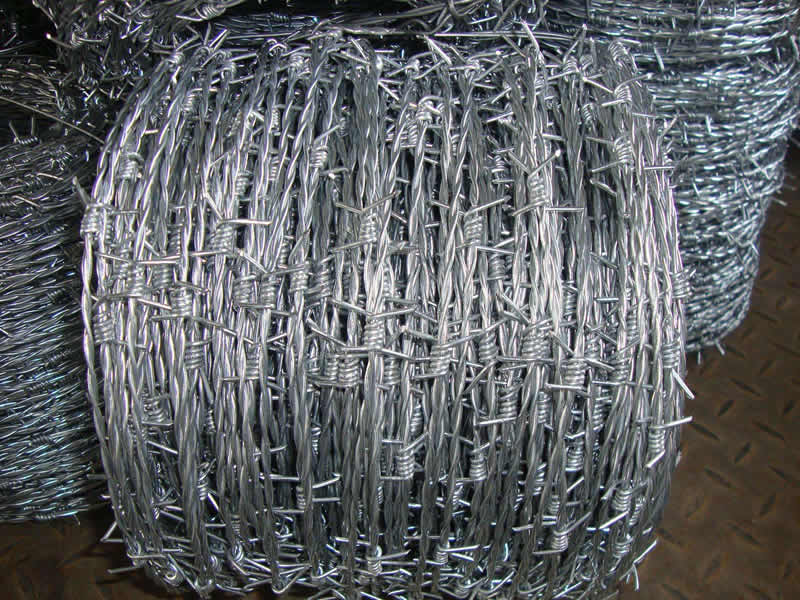

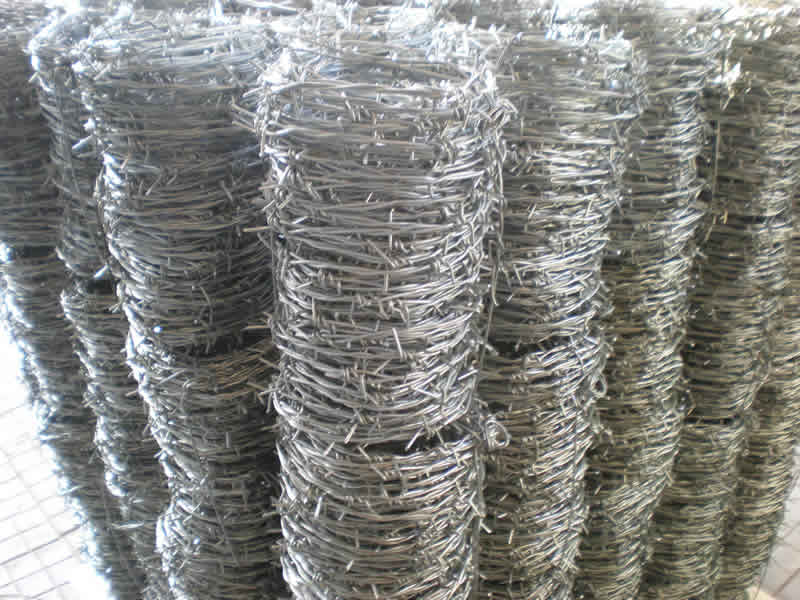

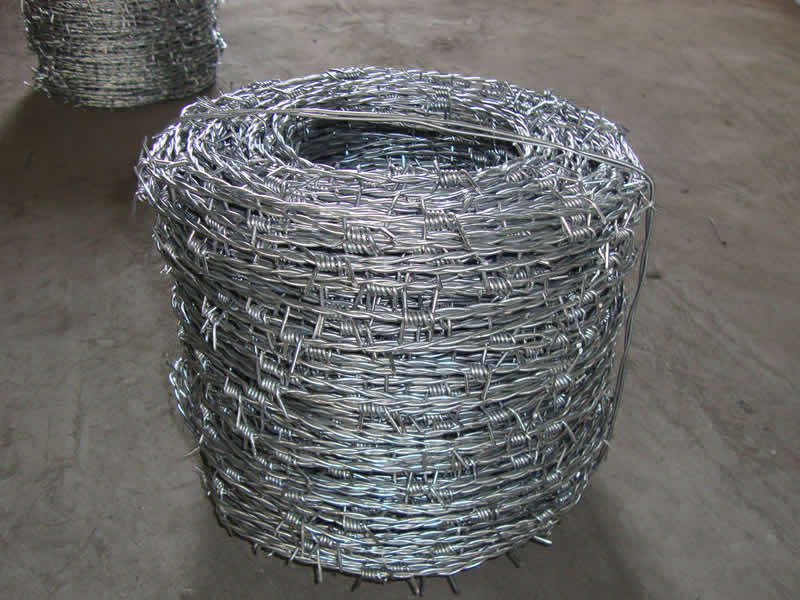

* Galvanized Barbed Wire

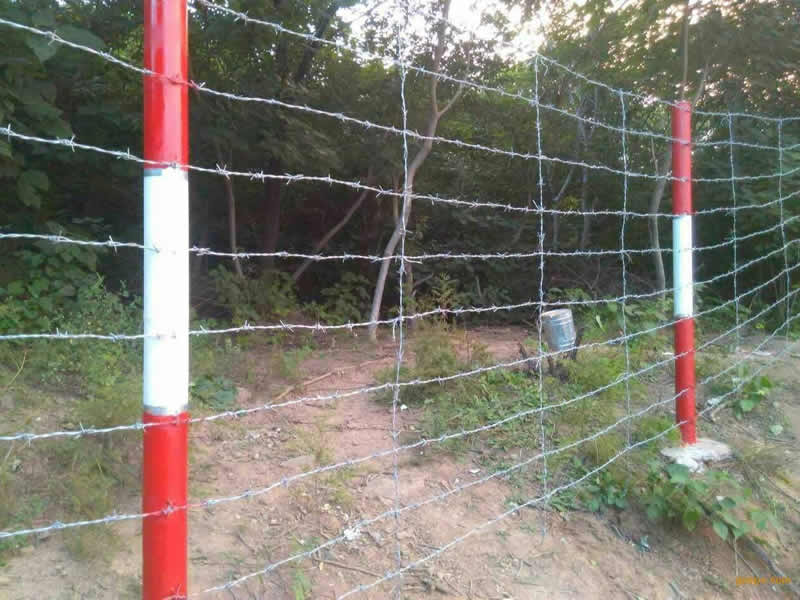

Galvanized barbed wire is used in defending of farm land, sport ground, or used together with concertina razor wire. Normally it's settled above the fence, for example chain link fence and welded fence, avoiding climbing across. Galvanized barb wire can also form a barbed wire wall with wooden sticks or iron sticks. The weaving methods are one main wire, one barbed wire; one main wire, twin barbed wire; and twin main wire, twin barbed wire.

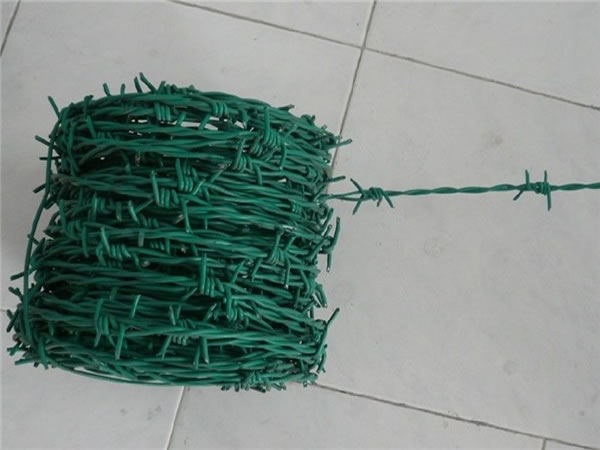

* PVC Coated Barbed Wire

Core of PVC coated barbed wire can be galvanized iron wire A variety of colors like green, blue, yellow, orange, gray

Packing: In coil of 25 kilos or 50 kilos , lined with PVC strips, then wrapped with P.V.C or hessian cloth

Barbed wire weave types:

 1) Single strand barbed wire,
 2) Double strand double twisted barbed wire;
 3) Double strand common twisted barbed wire

Specification List:

Material Weaving type Wire gauge(SWG)
main wire * barbed wire
Barbed Distance(mm) Barbed Length(mm)
1.Electric galvanized barbed wire;
2.Hot-dipped galvanized barbed wire
1.Single Twisted


2.Double Twisted
10#*12#(3.2*2.6mm) 75-150mm(that is 3 or 4 or 5 or 6) 15-30mm
12#*12#(2.6*2.6mm)
12#*14#(2.6*2.0mm)
14#*14#(2.0*2.0mm)
14#*16#(2.0*1.6mm)
16#*16#(1.6*1.6mm)
16#*18#(1.6*1.2mm)
3.PVC coated barbed wire
4.PE barbed wire
Before coating After coating 75-150mm(that is 3 or 4 or 5 or 6) 15-30mm
1.0mm-3.5mm 1.4mm-4mm
BWG11#-20# BWG3#-17#
PVC PE coating thickness: 0.4mm-0.6mm;
Different colors or length are available at customers' request.
