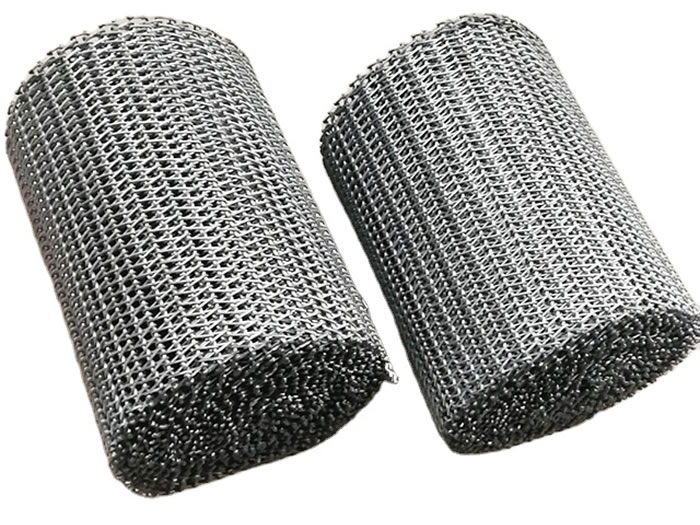

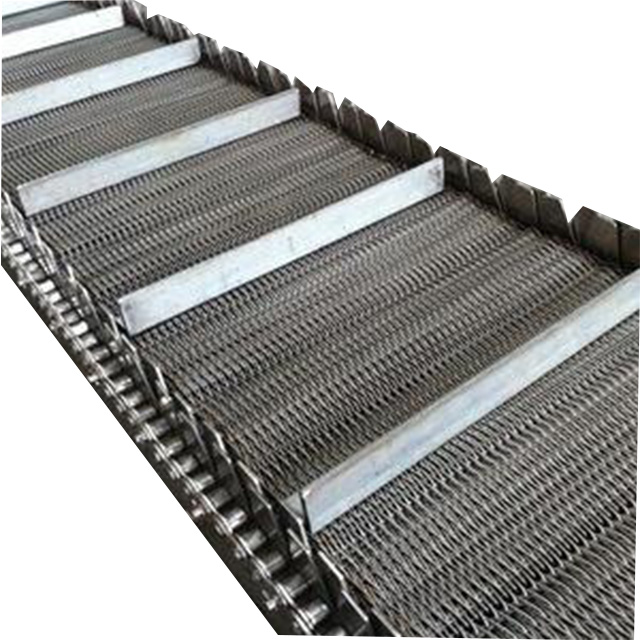

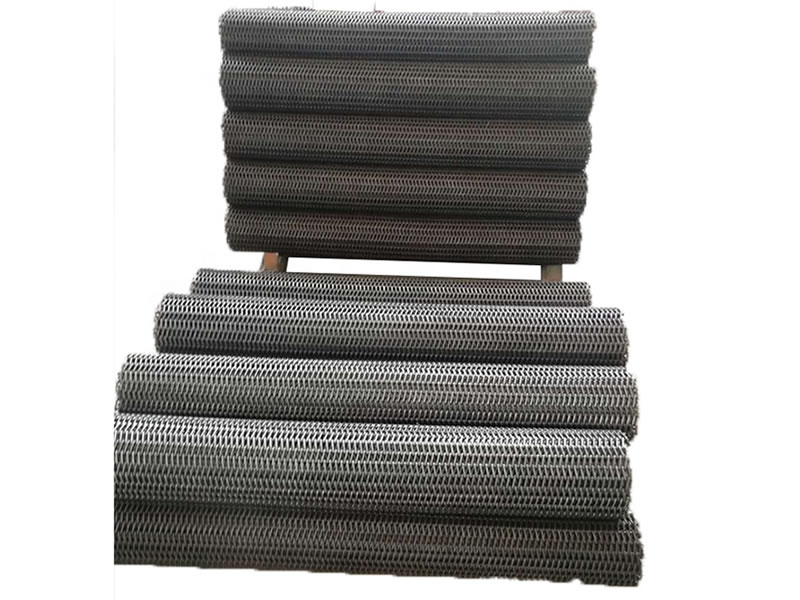

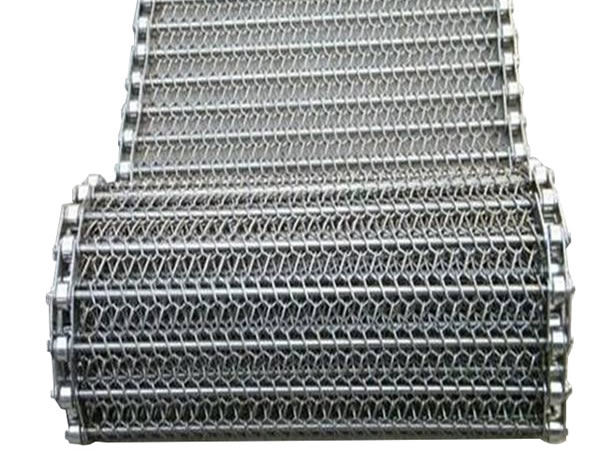

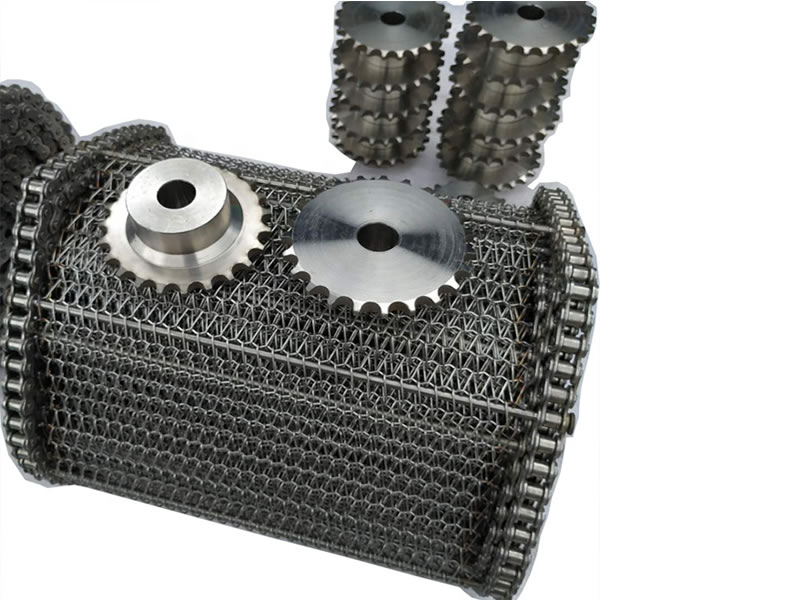

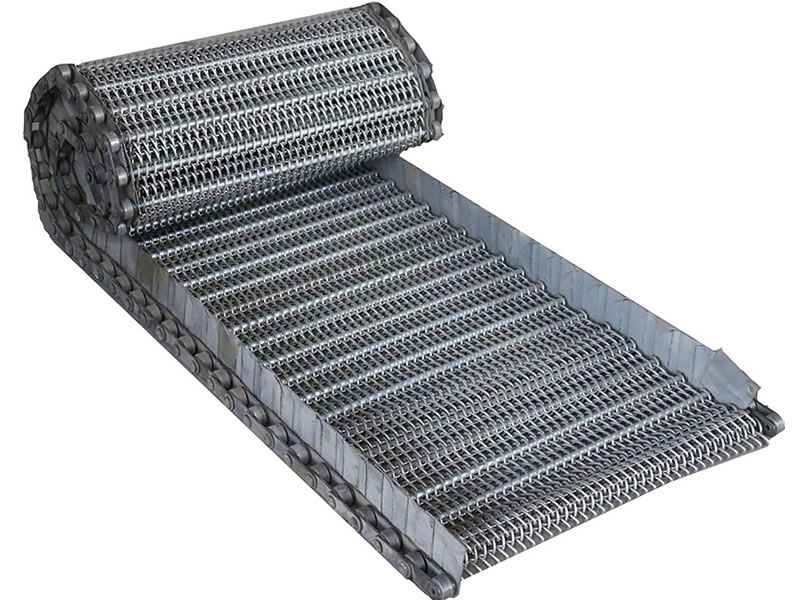

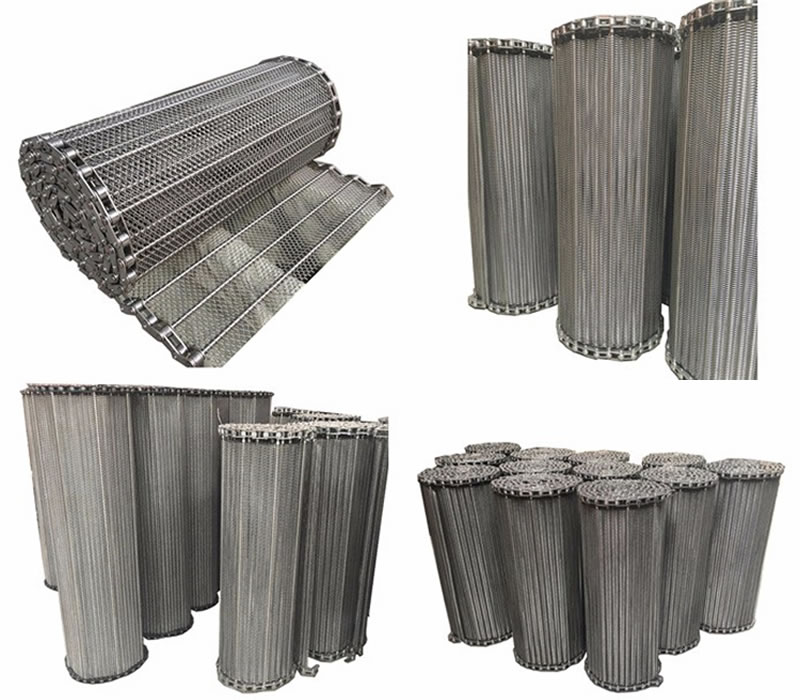

Balance Conveyor Belt

Compound balance weave wire mesh belt has strong structure, can work under heavy duty and high temperature, the materials of SUS 310S, SUS 316L, AISI 314 and SUS 304 are mostly used.

Advantages:

  1) Since the surface is flat and smooth, the belts can carry small items and unstable products.

  2) The allowable tension is high, so that heavy load can be transported.

  3) The belt strength against pressure is high, so that the belts can be used for processing under pressure.

  4) The belts can be used at high temperature.

  5) The belts can be used for textile products refining and cleaning process.

Typical Material:

  1) AISI 314 (1150℃)

  2) SUS 310S (1090℃)

  3) SUH 330 (1150℃)

  4) SUS 304 (870℃)

  5) Super alloy Cr20Ni80 (1250℃)--electrical furnace wire

Typical Application:

  1) sintering

  2) annealing

  3) brazing

  4) firing

  5) tempering

  6) hardening

  7) all kinds of mesh belt furnaces

We can make compound balance belt against your photo, drawing or sample.
